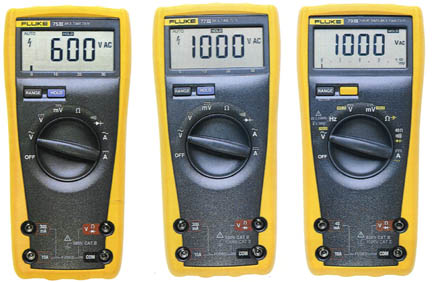

FLUKE-75III/77III/79III 數字電錶
| 功能 | 範圍及解析度 | 最佳精度 | ||
| 75 | 77 | 79 | ||
| VDC | 40.00mV, 400.0mV, 4.000V, 40.00V, -1000V | ±(0.3%+1) | ||
| 320.0mV, 3.200V, 32.00V, 320.0V, -1000V | ±(0.3%+1) | |||
| 320.0mV, 3.200V, 32.00V, 320.0V, -600V | ±(0.3%+1) | |||
| VAC | 400.0mV, 4.000V, 40.00V, 400.0V, -1000V | ±(1.5%+1) | ||
| 3.200V, 32.00V, 320.0V, 1000V | ±(2%+2) | |||
| 3.200V, 32.00V, 320.0V, -600V | ±(2%+2) | |||
| ADC | 4.000mA, 40.00mA, 4.000A, -10A* | ±(0.5%+2) | ||
| 32.00mA, 320.0mA, 4.000A, -10A* | ±(1.5%+2) | ±(1.5%+2) | ||
| AAC | 4.000mA, 40.00mA, 4.000A, -10A* | ±(1.5%+2) | ||
| 32.00mA, 320.0mA, -10A* | ±(2.5%+21) | ±(2.5%+2) | ||
| 電阻 | 400.0Ω, 4.000Ω, 40.00kΩ, 400.00kΩ, 4.000MΩ, -40MΩ | ±(0.4%+1) | ||
| 320.0Ω, 3.200kΩ, 32.00kΩ, 320.00kΩ, 3.200MΩ, 32MΩ | ±(0.5%+1) | ±(0.5%+1) | ||
| Lo Ohms | 40.00Ω 和 400.0Ω | N/A | N/A | 5% |
| 靜電容量 | 99.99nF, 999.9nF, 9.999μF, 99.99μF, 999.9μF, 9999μF | N/A | N/A | ±(1.9%+2) |
| 頻率 | 99.00Hz, 999.9Hz, 9.999kHz, 20.00kHz | N/A | N/A | ±(0.01%+1) 1Hz 到 20kHz |
